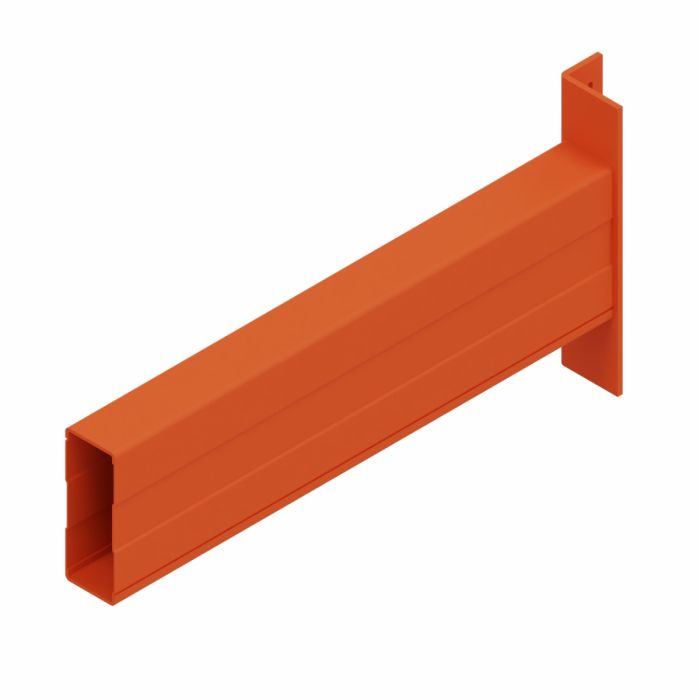

Still Beam - S-PNB0443/1.5-2000-N
New Still beam 2000 mm (PNB 0443/1.5)
New Still beam PNB 0443/1.5 for pallet racking. Size 2000 x 130 x 50 mm, material thickness 1.5 mm, supplied with 2 locking pins.
Specifications Still beam
- Brand: Still
- Type: PNB 0443/1.5
- Condition: new
- Dimension: 2000 x 130 x 50 mm
- Material thickness: 1.5 mm
- Includes: 2 locking pins
- Suitable for: two euro pallets (800 x 1200 mm) side by side
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 20 | 21% | €51.42 | |
| 40 | 32% | €44.62 | |
| 80 | 40% | €39.12 |
Still Beam - S-PNB0443/1.5-1900-N
Previous
New beam for quick replacement or expansion of your pallet racking
This new Still beam of type PNB 0443/1.5 is intended as a horizontal load-bearing beam in a pallet racking system and, together with the uprights, forms the level on which pallets are safely stored. With a length of 2000 mm and a profile of 130 x 50 mm, this is a practical choice for warehouses wanting to maintain a Still racking configuration with matching components. The material thickness of 1.5 mm contributes to a robust construction. Supplied including 2 locking pins for secure locking.
Application in the warehouse
In daily logistics, the right beam determines the stability and load capacity of each storage level. This beam is used when building up or repairing racking bays, for example in case of damage repair, reorganisation, or adding extra levels within an existing Still pallet racking system.
Practical for replacement or expansion
For companies that value continuity, this is an efficient choice for maintenance or refurbishment of an existing racking system. You can carry out targeted replacement with the correct Still beam and maintain consistent dimensions, so that your racking materials remain uniform and operational.
Suitable for pallets
With a beam length of 2000 mm, this pair of beams provides space for two euro pallets (800 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between the pallets is maintained, which corresponds to an average maximum pallet width of 887.5 mm. Alternatively, a combination of 1 euro pallet and 1 block pallet (two pallets in total) also fits. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | S-PNB0443/1.5-2000-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PNB0443/1.5-2000 |
| Product Group | Beam |
| Beam Type | PNB 0443/1.5 |
| Condition | New |
| Beam Length | 2000 |
| Height (mm) | 130 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Material | Steel - S235 |
| Finish | Coated |
| Color | RAL 2004 |
| Delivery Time Indication | 3-5 weeks |
