Still Beam - S-PNB0436-1900-N

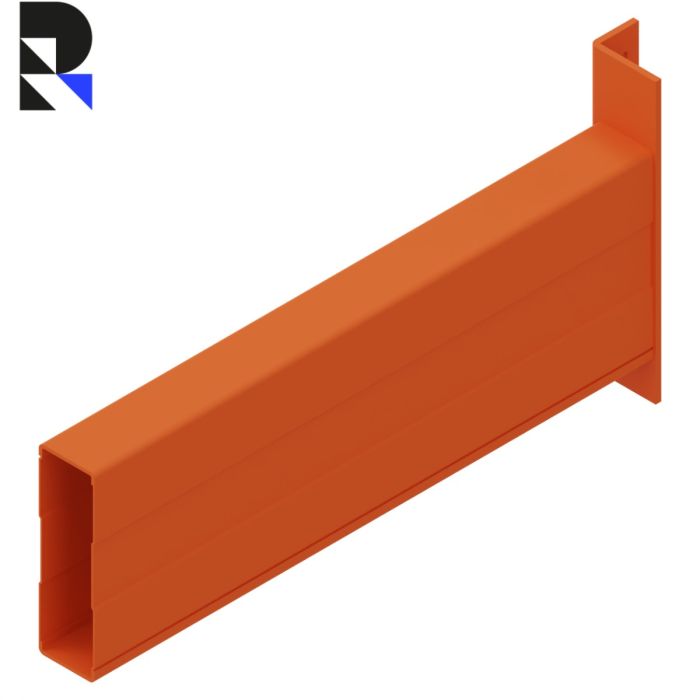

New Still beam 1900 mm (PNB 0436)
New Still beam PNB 0436 for pallet racking. Size 1900 x 160 x 50 mm, material thickness 1.75 mm, supplied with 2 locking pins.
Specifications Still beam
- Brand: Still
- Type: PNB 0436
- Condition: new
- Dimensions: 1900 x 160 x 50 mm
- Material thickness: 1.75 mm
- Includes: 2 locking pins
- Suitable for: two euro pallets (800 x 1200 mm) side by side
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 20 | 18% | €61.09 | |
| 40 | 28% | €54.29 | |
| 80 | 35% | €48.79 |
Still Beam - S-PNB0436-1800-N
Previous
Robust new beam as a reliable support for your pallet racking
This new Still beam of type PNB 0436 is intended as a horizontal support beam in a pallet racking system and, together with the uprights, forms the level on which pallets are safely stored. With a length of 1900 mm and a profile of 160 x 50 mm, this is a practical choice for warehouses that want to maintain a Still racking configuration with matching components. The material thickness of 1.75 mm contributes to a robust construction. Supplied including 2 locking pins for secure locking.
Application in the warehouse
In daily logistics, the right beam determines the stability and load capacity of each storage level. This beam is used when building or repairing racking bays, for example in case of damage repair, reorganization, or adding extra levels within an existing Still pallet racking.
Practical for replacement or expansion
For technical services, warehouse fitters, and maintenance parties, this is a practical choice when a suitable component is needed quickly. The correct size and locking mechanism contribute to a neat, safe installation without surprises afterwards.
Suitable for pallets
With a beam length of 1900 mm, this pair of beams offers space for two euro pallets (800 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between the pallets is maintained, which amounts to an average maximum pallet width of 837.5 mm. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | S-PNB0436-1900-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PNB0436-1900 |
| Product Group | Beam |
| Beam Type | PNB 0436 |
| Condition | New |
| Beam Length | 1900 |
| Height (mm) | 160 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.75 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 2004 |
| Delivery Time Indication | 3-5 weeks |
