Still Frame - S-PNFB 12-1150-11-N - Compleet

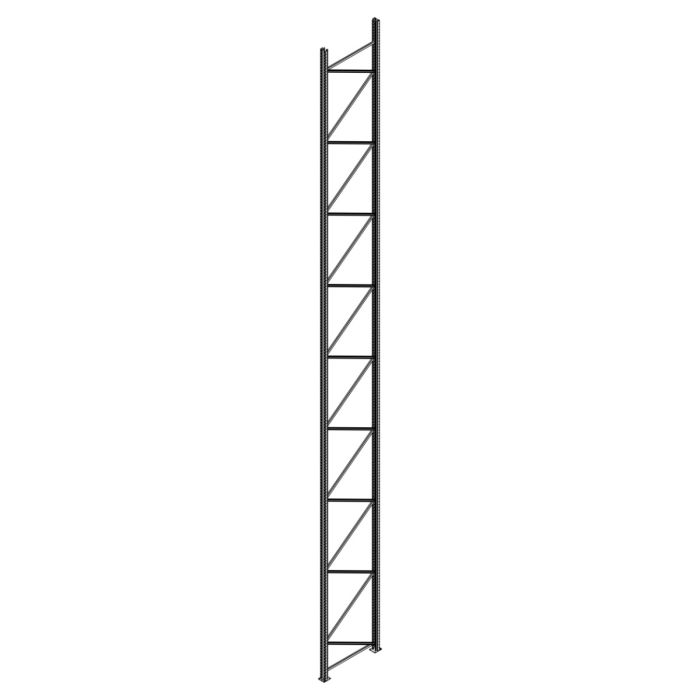

Still complete frame Type 12
New Still frame S-PNFB 12-1150-11-N for pallet racking; 11500x1100 mm, grey NCS S 4005. Ideal as replacement or extension.
Specifications
- Dimensions: 11500x1100 mm
- 2 uprights PNUPA 12 (85x65 mm)
- Incl. 2 base plates, bracing, fastening material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 7% | €352.19 | |
| 20 | 10% | €340.19 | |
| 40 | 11% | €334.19 |
Still Frame - S-PNFB 12-1125-11-N - Compleet
Previous
Complete pallet racking frame for stable and safe racking setup
This complete Still frame is a solid foundation for a pallet racking system and is supplied as a complete package for a reliable upright structure. This is a Type 12 frame with assembled dimensions of 11500 x 1100 mm, finished in grey (NCS S 4005). With two uprights (PNUPA 12) and corresponding bracing and base plates, you build a frame that distributes the load evenly to the floor and keeps the racking properly aligned.
Application in the warehouse
A frame forms the vertical load-bearing structure of your racking and is essential for stability, bay layout and safety on the warehouse floor. This frame is suitable for use in warehouses where pallet storage, order picking or reconfiguration of racking rows requires a consistent and sturdy foundation.
Practical for replacement or extension
Ideal when you want to replace a damaged frame or expand an existing setup with Still components. Delivery is standard unassembled, unless otherwise ordered, which keeps transport and handling efficient for projects and maintenance.
Possible beam configurations and pallet heights
For a frame height of 11500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2300 | 2150 | 2050 |
| 1st beam | 4600 | 2150 | 2050 |
| 2nd beam | 6900 | 2150 | 2050 |
| 3rd beam | 9150 | 2100 | 2000 |
| 4th beam | 11400 | 2100 | 2000 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1900 | 1750 | 1650 |
| 1st beam | 3800 | 1750 | 1650 |
| 2nd beam | 5700 | 1750 | 1650 |
| 3rd beam | 7600 | 1750 | 1650 |
| 4th beam | 9500 | 1750 | 1650 |
| 5th beam | 11400 | 1750 | 1650 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1650 | 1500 | 1400 |
| 1st beam | 3300 | 1500 | 1400 |
| 2nd beam | 4950 | 1500 | 1400 |
| 3rd beam | 6600 | 1500 | 1400 |
| 4th beam | 8200 | 1450 | 1350 |
| 5th beam | 9800 | 1450 | 1350 |
| 6th beam | 11400 | 1450 | 1350 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1450 | 1300 | 1200 |
| 1st beam | 2900 | 1300 | 1200 |
| 2nd beam | 4350 | 1300 | 1200 |
| 3rd beam | 5800 | 1300 | 1200 |
| 4th beam | 7200 | 1250 | 1150 |
| 5th beam | 8600 | 1250 | 1150 |
| 6th beam | 10000 | 1250 | 1150 |
| 7th beam | 11400 | 1250 | 1150 |
| SKU | S-PNFB 12-1150-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PNFB 12-1150-11 |
| Product Group | Complete Frames |
| Frame Type | PNFB 12 |
| Condition | New |
| Length (mm) | 11500 |
| Width (mm) | 85 |
| Depth (mm) | 1100 |
| Thickness (mm) | 1.75 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | NCS S 4005 |
| Delivery Time Indication | 3-5 weeks |
