Still Frame - S-PLFB 17-850-11-N - Compleet

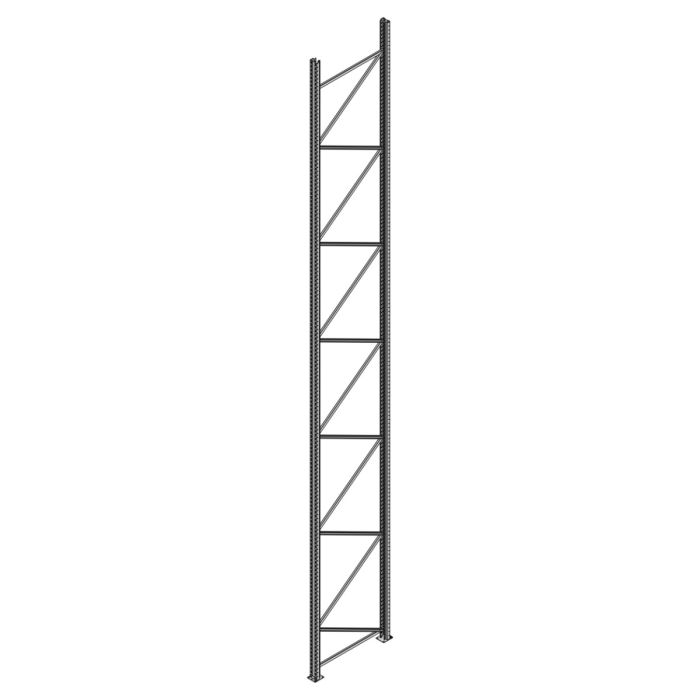

Complete Still frame PLUPA 17 (new)
Complete new Still frame S-PLFB 17-850-11-N for pallet racking: 8500x1100 mm, grey NCS S 4005. Ideal as replacement frame for secure warehouse storage.
Specifications
- Brand: Still, type 17/18
- Assembled dimensions: 8500x1100 mm
- 2 uprights PLUPA 17 (120x65 mm)
- Incl. 2 base plates, bracing, fastening
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 7% | €317.90 | |
| 20 | 11% | €305.90 | |
| 40 | 13% | €299.90 |
Still Frame - S-PLFB 17-600-11-N - Compleet
Previous
Robust frame as pallet racking component for stable and secure storage
This complete Still frame is designed as a load-bearing side element of a pallet racking system and forms the foundation for a reliable warehouse setup. It is a frame with an assembled size of 8500 x 1100 mm, finished in grey (NCS S 4005). The uprights are of the PLUPA 17 type, with a profile of 120 mm wide and 65 mm deep, making the frame suitable for professional applications where stability and dimensional accuracy are essential.
Application in the warehouse
Frames are used to build the racking bays and support the beams. This Still frame is supplied with base plates, horizontal and diagonal bracing, and the corresponding fastening material, so you can create a solid structure within your Still Type 17/18 environment. Delivery is standard unassembled, which makes transport and handling on-site practical.
Practical for replacement or expansion
Ideal for B2B buyers who want to replace a damaged frame or expand an existing pallet racking system with a consistent component. By choosing a complete frame, you minimize downtime and keep the assembly clear, with all necessary components in one delivery.
Possible beam configurations and pallet heights
For a frame height of 8500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2100 | 1950 | 1850 |
| 1st beam | 4200 | 1950 | 1850 |
| 2nd beam | 6300 | 1950 | 1850 |
| 3rd beam | 8400 | 1950 | 1850 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1700 | 1550 | 1450 |
| 1st beam | 3400 | 1550 | 1450 |
| 2nd beam | 5100 | 1550 | 1450 |
| 3rd beam | 6750 | 1500 | 1400 |
| 4th beam | 8400 | 1500 | 1400 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1400 | 1250 | 1150 |
| 1st beam | 2800 | 1250 | 1150 |
| 2nd beam | 4200 | 1250 | 1150 |
| 3rd beam | 5600 | 1250 | 1150 |
| 4th beam | 7000 | 1250 | 1150 |
| 5th beam | 8400 | 1250 | 1150 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1200 | 1050 | 950 |
| 1st beam | 2400 | 1050 | 950 |
| 2nd beam | 3600 | 1050 | 950 |
| 3rd beam | 4800 | 1050 | 950 |
| 4th beam | 6000 | 1050 | 950 |
| 5th beam | 7200 | 1050 | 950 |
| 6th beam | 8400 | 1050 | 950 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1050 | 900 | 800 |
| 1st beam | 2100 | 900 | 800 |
| 2nd beam | 3150 | 900 | 800 |
| 3rd beam | 4200 | 900 | 800 |
| 4th beam | 5250 | 900 | 800 |
| 5th beam | 6300 | 900 | 800 |
| 6th beam | 7350 | 900 | 800 |
| 7th beam | 8400 | 900 | 800 |
| SKU | S-PLFB 17-850-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PLFB 17-850-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 17 |
| Condition | New |
| Length (mm) | 8500 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | NCS S 4005 |
| Delivery Time Indication | 3-5 weeks |
