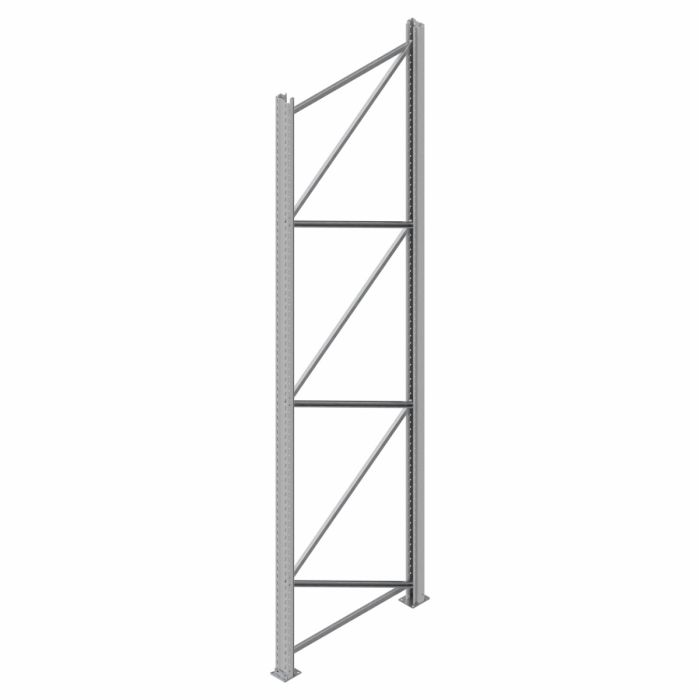

Still Frame - S-PLFB 17-350-11-N - Compleet
Still pallet racking frame complete 3500x1100
Complete Still frame (S-PLFB 17) for pallet racking, new. Ideal for replacement or expansion of warehouse racking; supplied unassembled. Height 3500 mm, depth 1100 mm, grey NCS S 4005.
Specifications
- Brand: Still, type 17 (PLUPA 17)
- Assembled dimensions: 3500 x 1100 mm
- Uprights: 2x 120x65 mm
- Includes: 2 base plates, horizontal/diagonal bracing, fastening material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 14% | €151.45 | |
| 20 | 21% | €139.45 | |
| 40 | 24% | €133.45 |
Still Frame - S-PLFB 17-375-11-N - Compleet
Previous
Complete pallet racking frame for stable and safe racking construction
This Still frame is a complete upright frame for pallet racking, designed as the load-bearing side of your racking bay. With an assembled dimension of 3500 x 1100 mm, it forms the foundation for reliable warehouse construction. The frame is finished in grey (NCS S 4005) and built from two uprights type PLUPA 17 with a profile size of 120 mm wide and 65 mm deep, including base plates, horizontal and diagonal bracing and the associated fastening material.
Application in the warehouse
An upright frame determines the height and depth of your racking row and provides stability under load. This complete frame is used in new pallet racking construction or when replacing damaged frames, for example after impact, to ensure your storage layout remains safe and operationally reliable.
Practical for replacement or expansion
For maintenance departments, warehouse managers and assembly partners, this frame is an efficient choice because all essential components are supplied directly. Delivery is unassembled unless otherwise ordered, which simplifies transport and handling on site.
Possible beam configurations and pallet heights
For a frame height of 3500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1700 | 1550 | 1450 |
| 1st beam | 3400 | 1550 | 1450 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1150 | 1000 | 900 |
| 1st beam | 2300 | 1000 | 900 |
| 2nd beam | 3400 | 950 | 850 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 850 | 700 | 600 |
| 1st beam | 1700 | 700 | 600 |
| 2nd beam | 2550 | 700 | 600 |
| 3rd beam | 3400 | 700 | 600 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 700 | 550 | 450 |
| 1st beam | 1400 | 550 | 450 |
| 2nd beam | 2100 | 550 | 450 |
| 3rd beam | 2750 | 500 | 400 |
| 4th beam | 3400 | 500 | 400 |
| SKU | S-PLFB 17-350-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PLFB 17-350-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 17 |
| Condition | New |
| Length (mm) | 3500 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | NCS S 4005 |
| Delivery Time Indication | 3-5 weeks |
