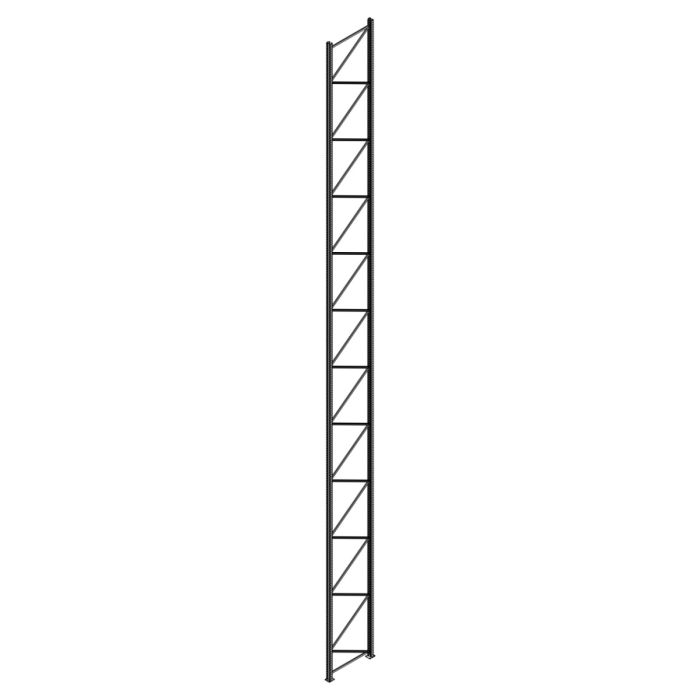

Still Frame - S-PLFB 155-1450-11-N - Compleet
Complete Still frame PLUPA 155 for pallet racking
New complete Still frame S-PLFB 155-1450-11-N for pallet racking repair or extension. 14500x1100mm, grey NCS S 4005, delivered unassembled.
Specifications
- Brand: Still
- Type: PLUPA 155 / S-PLFB 155-1450-11-N
- Dimensions: 14500x1100mm
- Color: grey NCS S 4005
- Set: 2 uprights, 2 base plates, bracing + fasteners
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 5% | €524.27 | |
| 20 | 7% | €512.27 | |
| 40 | 8% | €506.27 |
Still Frame - S-PLFB 155-1475-11-N - Compleet
Previous
Robust frame as stable foundation for your pallet racking setup
This complete Still frame forms the load-bearing side section of your pallet racking and is designed for safe, stable construction of a warehouse racking system. The frame is supplied with PLUPA 155 uprights, base plates, horizontal and diagonal bracing and associated fastening materials. With a depth of 1100 mm and an assembled height of 14500 mm, this is a solid choice for professional storage applications. Finished in grey (NCS S 4005) for a neat, uniform appearance in your warehouse.
Application in the warehouse
Frames determine the stability and alignment of the racking bay and, together with the beams, carry the load to the floor. This Still frame is suitable for situations where reliability and structural strength are essential, for example in heavily used pallet locations or when extending existing rows within Still Type 15/16.
Practical for replacement or extension
Ideal for B2B buyers who want to quickly replace a complete pallet racking component or extend a setup without having to assemble loose parts. Standard delivery unassembled, so that transport and handling remain efficient, unless otherwise ordered.
Possible beam configurations and pallet heights
For a frame height of 14500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2400 | 2250 | 2150 |
| 1st beam | 4800 | 2250 | 2150 |
| 2nd beam | 7200 | 2250 | 2150 |
| 3rd beam | 9600 | 2250 | 2150 |
| 4th beam | 12000 | 2250 | 2150 |
| 5th beam | 14400 | 2250 | 2150 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2100 | 1950 | 1850 |
| 1st beam | 4150 | 1900 | 1800 |
| 2nd beam | 6200 | 1900 | 1800 |
| 3rd beam | 8250 | 1900 | 1800 |
| 4th beam | 10300 | 1900 | 1800 |
| 5th beam | 12350 | 1900 | 1800 |
| 6th beam | 14400 | 1900 | 1800 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3600 | 1650 | 1550 |
| 2nd beam | 5400 | 1650 | 1550 |
| 3rd beam | 7200 | 1650 | 1550 |
| 4th beam | 9000 | 1650 | 1550 |
| 5th beam | 10800 | 1650 | 1550 |
| 6th beam | 12600 | 1650 | 1550 |
| 7th beam | 14400 | 1650 | 1550 |
| SKU | S-PLFB 155-1450-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PLFB 155-1450-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 155 |
| Condition | New |
| Length (mm) | 14500 |
| Width (mm) | 100 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2.25 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | NCS S 4005 |
| Delivery Time Indication | 3-5 weeks |
