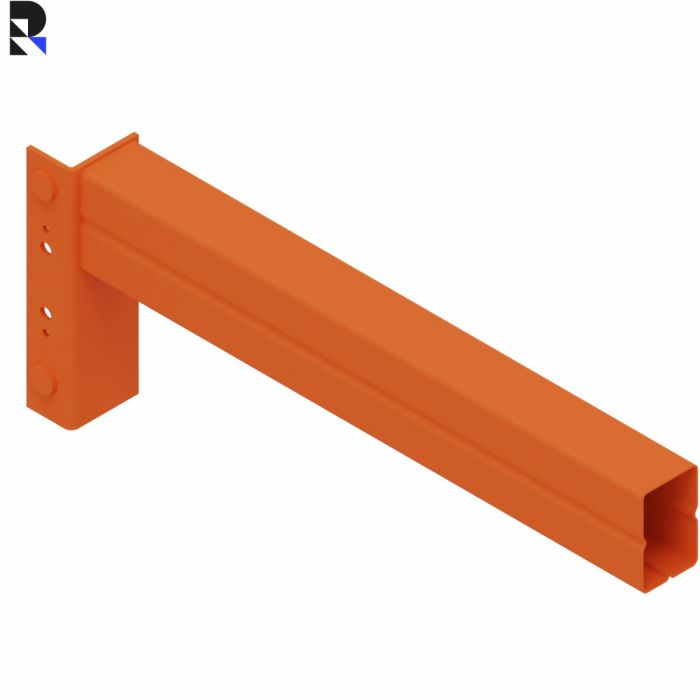

Polypal Beam 80N - 3600 x 78 x 50
Polypal tubular beam 80N 3600 mm
This used Polypal beam 80N (3600 x 78 x 50 mm) is a tubular beam for pallet racking, ideal as a replacement beam for 2C beams.
Specifications
- Brand: Polypal
- Type: tubular beam 80N
- Dim.: 3600 x 78 x 50 mm
- Condition: used
- Incl.: 2 locking pins
- Suitable for: four europallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side
Polypal Beam 80N - 3500 x 78 x 50
Previous
Tubular beam for stable spans and safe bay layout
This Polypal 80N beam is a robust tubular beam for pallet racking, designed to connect frames and form a reliable beam pair for storing pallets and carriers. With a length of 3600 mm and a profile size of 78 x 50 mm, this component is suitable when you need a larger span without compromising on stability. The beam is supplied including 2 locking pins for secure locking into the upright profile.
Application in the warehouse
In a warehouse racking system, beams determine the width of the bay and transfer the load to the uprights. This 2C beam is practical when setting up or reconfiguring pallet bays, for example with varying pallet sizes or when you want to optimize the layout of a racking aisle.
Practical for replacement or expansion
For B2B, being able to replace quickly is essential in case of damage or reconfiguration. Thanks to the included locking pins, you can mount this pallet racking component immediately and efficiently expand or restore your racking configuration with a matching Polypal beam.
Suitable for pallets
With a beam length of 3600 mm, this beam pair accommodates four europallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 806.2 mm. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | 80N-3600-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Polypal |
| Artikelnummer Fabrikant | 80N-3600 |
| Product Group | Beam |
| Beam Type | 80N |
| Condition | New |
| Beam Length | 3600 |
| Height (mm) | 78 |
| Depth (mm) | 50 |
| Finish | Coated |
| Color | RAL 2004 |
| Delivery Time Indication | 4-6 weeks |
