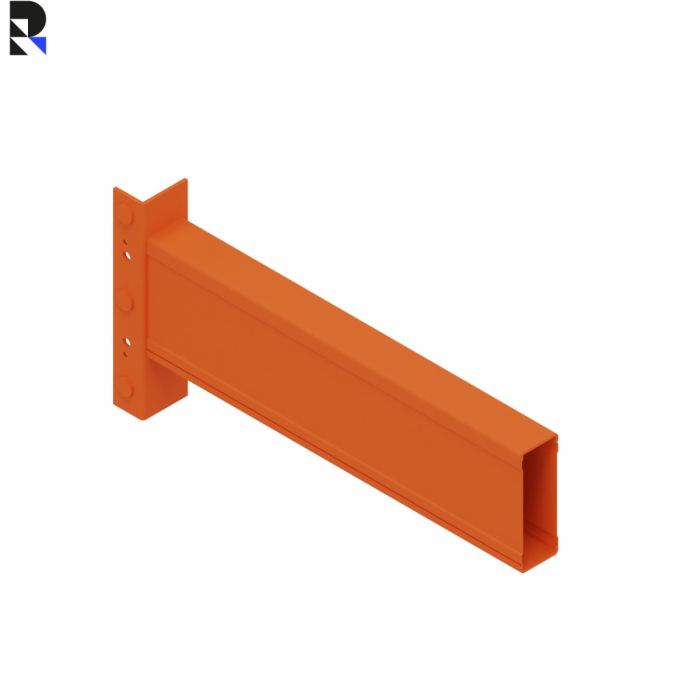

Polypal Beam 1415 - 3700 x 140 x 50
New Polypal beam 3700 mm (1415)
New Polypal beam 1415 for pallet racking. Size 3700 x 140 x 50 mm, material thickness 1.5 mm, supplied with 2 locking pins.
Specifications Polypal beam
- Brand: Polypal
- Type: 1415
- Condition: new
- Size: 3700 x 140 x 50 mm
- Material thickness: 1.5 mm
- Includes: 2 locking pins
- Suitable for: four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side
Polypal Beam 1415 - 3800 x 140 x 50
Previous
Robust new beam as a reliable support for your pallet racking
This new Polypal beam of type 1415 is intended as a horizontal support beam in a pallet racking system and, together with the uprights, forms the level on which pallets are safely stored. With a length of 3700 mm and a profile of 140 x 50 mm, this is a practical choice for warehouses that want to maintain a Polypal racking configuration with matching components. The material thickness of 1.5 mm contributes to a robust construction. Supplied including 2 locking pins for secure locking.
Application in the warehouse
In daily logistics, the right beam determines the stability and load capacity of each storage level. This beam is used when building or repairing racking bays, for example in case of damage repair, reorganization, or adding extra levels within an existing Polypal pallet racking system.
Practical for replacement or expansion
For technical services, warehouse fitters and maintenance parties, this is a practical choice when a suitable component is needed quickly. The correct size and locking contribute to a neat, safe installation without surprises afterwards.
Suitable for pallets
With a beam length of 3700 mm, this pair of beams accommodates four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 831.2 mm. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | 1415-3700-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Polypal |
| Artikelnummer Fabrikant | 1415-3700 |
| Product Group | Beam |
| Beam Type | 1415 |
| Condition | New |
| Beam Length | 3700 |
| Height (mm) | 140 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2004 |
| Delivery Time Indication | 4-6 weeks |
