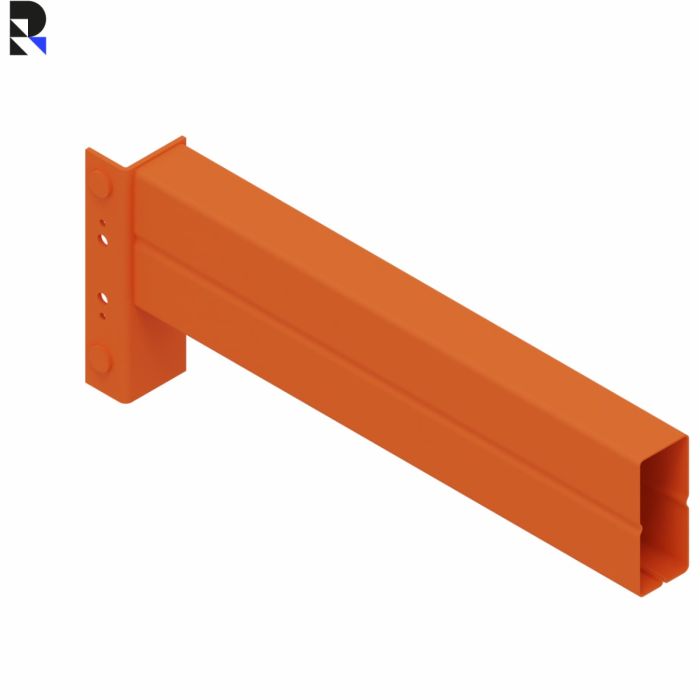

Polypal Beam 120N - 2200 x 118 x 50
Polypal tubular beam 120N 2200 mm
New Polypal beam 120N (2200x118x50 mm) for pallet racking; ideal as a replacement beam for safe warehouse fit-out.
Specifications
- Type: 2C beam / tubular beam
- Brand: Polypal
- Size: 2200 x 118 x 50 mm
- Includes: 2 locking pins
- Suitable for: two block pallets (1000 x 1200 mm) side by side
Polypal Beam 120N - 2100 x 118 x 50
Previous
Robust tubular beam for stable support beams in your pallet racking
This Polypal 120N tubular beam forms the horizontal connection between the uprights and provides reliable support for pallets and warehouse goods. With a length of 2200 mm and a profile of 118 x 50 mm, this is a commonly used beam size for professional storage setups. The included locking pins help keep the beam securely in place within the racking bay.
Application in the warehouse
In pallet racking, the beam determines the bay width and the support structure of each level. This tubular beam is used when building up or adjusting storage levels, where a sturdy and tight connection is needed for daily forklift use and organized goods flows.
Practical for replacement or expansion
Ideal when you want to replace a damaged beam or expand an existing Polypal setup with extra levels. Thanks to the specific 120N type and the included locking pins, you order a complete beam set directly for quick assembly and minimal downtime.
Suitable for pallets
With a beam length of 2200 mm, this beam pair accommodates two block pallets (1000 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between the pallets is maintained, corresponding to an average maximum pallet width of 987.5 mm. Alternatively, a combination of 1 euro pallet and 1 block pallet (two pallets total) also fits. This size matches bays specifically set up for this type of pallet.
| SKU | 120N-2200-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Polypal |
| Artikelnummer Fabrikant | 120N-2200 |
| Product Group | Beam |
| Beam Type | 120N |
| Condition | New |
| Beam Length | 2200 |
| Height (mm) | 118 |
| Depth (mm) | 50 |
| Finish | Coated |
| Color | RAL 2004 |
| Delivery Time Indication | 4-6 weeks |
