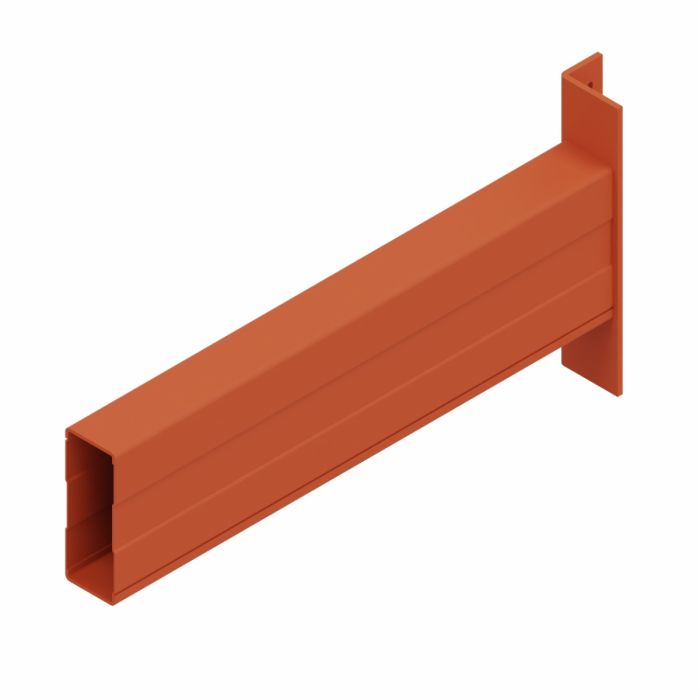

Used Toyota Beam - TPB0443/1.5-2300-N

Reliable beam for a sturdy build-up of your racking bay

This used Toyota beam of type TPB 0443/1.5 is intended as a horizontal load-bearing beam in a pallet racking system and, together with the uprights, forms the level on which pallets are safely stored. With a length of 2300 mm and a profile of 130 x 50 mm, this is a practical choice for warehouses looking to maintain a Toyota racking configuration with matching components. The material thickness of 1.5 mm contributes to a robust construction. Supplied including 2 locking pins for secure locking.

Application in the warehouse

Within a pallet racking system, this beam provides a stable and level storage tier. It is typically used when repairing a damaged bay, extending an existing row of Toyota racking, or adjusting the bay layout to a new storage requirement.

Practical for replacement or expansion

For technical services, warehouse fitters and maintenance parties, this is a practical choice when a suitable part is needed quickly. The correct size and locking mechanism contribute to a neat, safe installation without surprises afterwards.

Suitable for pallets

With a beam length of 2300 mm, this beam pair accommodates two block pallets (1000 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 1037.5 mm. This size matches bays specifically set up for this type of pallet.
