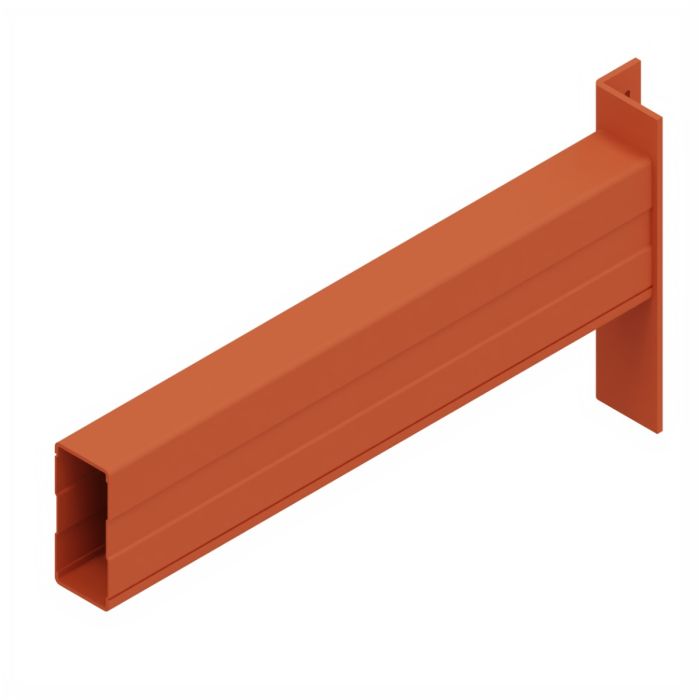

Used Toyota Beam - TPB0441-3300-N

Used beam for a stable and safe pallet racking setup

This used Toyota beam is intended for carrying palletized loads within a Toyota pallet racking system. With a length of 3300 mm and a profile size of 110 x 50 mm, this is a practical choice when you want to repair an existing rack or adjust a bay layout, without unnecessary downtime in the warehouse.

Application in the warehouse

In pallet racking, beams form the load-bearing connection between the uprights and determine the bay width and support structure. This Toyota TPB0441-3300-N beam is used when replacing a damaged beam or when expanding a racking row. The included locking pins help keep the beam secured after installation.

Practical for replacement or expansion

For technical departments and warehouse managers, a suitable used beam is a quick, cost-efficient solution. You get an original Toyota part with relevant dimensions, ready for use as a replacement component or to complete a setup with the same beam length.

Suitable for pallets

With a beam length of 3300 mm, this beam pair provides space for three euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 1000 mm. Alternatively, a combination of 1 euro pallet and 2 block pallets (three pallets in total) also fits. This size corresponds to bays specifically arranged for this type of pallet.
