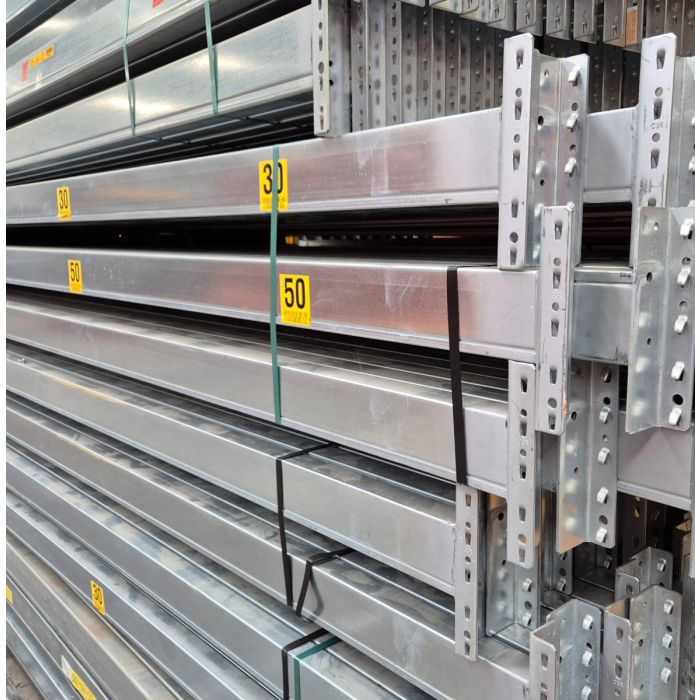

Used Dexion P90 Beam 3600x100x50x1.5 - C35 - galvanised

Galvanised used beam as a reliable base for long pallet bays

This used Dexion beam is intended as a load-bearing element in a pallet racking system and, together with the frame, forms a stable level for pallets or carriers. The galvanised finish provides extra protection in intensive warehouse environments and it is supplied including 2 locking pins, so the connection can be secured immediately. With a length of 3600 mm, this beam is suitable for wider spans where you want to make efficient use of storage space.

Application in the warehouse

The beam is suitable for the Dexion P90 product series and is used when you are replacing, reorganising, or expanding a level within the same system. The C35 connector type is designed for frames with a material thickness up to and including 2.5 mm, ensuring the connection hooks into the frame correctly and safely. The clear Dexion coding on the beam supports quick identification during maintenance and reconfiguration.

Practical for replacement or expansion

For B2B users, this is a practical choice when you quickly need a suitable pallet racking part without renewing an entire rack. The combination of galvanisation, standard P90 compatibility, and included locking pins makes this beam suitable for targeted replacement with minimal downtime.

Suitable for pallets

With a beam length of 3600 mm, this pair of beams accommodates four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. In accordance with the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 806.2 mm. This length is often chosen for racking bays with a fixed, uniform pallet layout.
