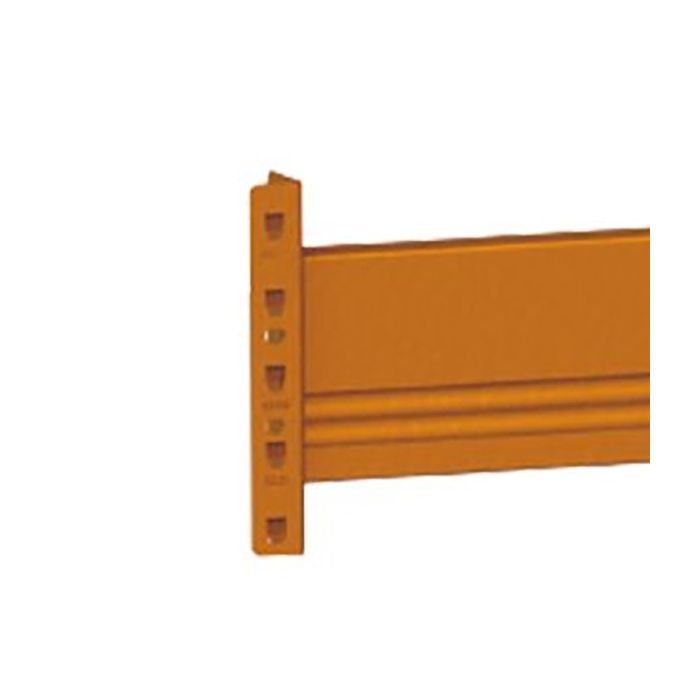

Used AR beam Ref. 94 - 2700 x 90 x 40 mm - T2

Sturdy beam as a pallet racking component for quickly reconfiguring bays

This used AR Racking beam is intended as a load-bearing element between two uprights and forms the basis for safe storage levels in a pallet racking system. With a length of 2700 mm and a profile of 90 x 40 mm, this is a practical choice when you want to restore an existing level or need an extra pair of beams. The beam is supplied with 2 locking pins for proper locking in the frame.

Application in the warehouse

In daily logistics, the right beam determines the stability and layout of your racking bay. This AR beam is used to position a pair of beams at the desired height, so that pallets and loads are supported neatly and predictably. The included locking pins help prevent unintended dislodgement due to vibrations or impact contact.

Practical for replacement or expansion

Ideal for B2B maintenance, damage repair, or expansion of an AR Racking pallet racking system without unnecessary rebuilding. You order a used component with a standard size specifically, so that downtime remains limited and your warehouse layout is quickly operational again.

Beam version: Type T2

Suitable for pallets

With a beam length of 2700 mm, three euro pallets (800 x 1200 mm) fit side by side on this pair of beams. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 800 mm. This length is often chosen for racking bays with a fixed, uniform pallet layout.
