Gebruikt Toyota Frame TPNFBG 12 - 5250 x 1100 mm - compleet

Used pallet racking frame for quick reconstruction and stable storage

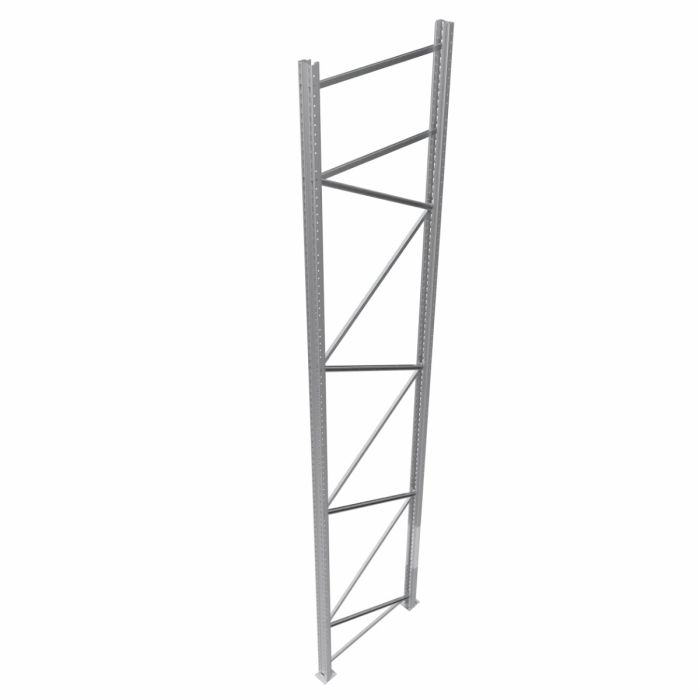

This complete Toyota frame is a used pallet racking component for building, replacing or extending your racking installation. It is a Type 12 frame supplied as an assembly with uprights, bracing, base plates and associated fastening material, so you can proceed without loose parts and keep warehouse downtime to a minimum. The assembled dimensions are 5250 x 1100 mm, with uprights of type TPNUG 12 (85 x 65 mm).

Application in the warehouse

A frame forms the load-bearing side of a pallet racking system and determines the stability and depth of a racking row. This used Toyota frame is suitable when an existing frame is damaged, when you want to extend a row, or when you want to reconfigure a section with a fixed depth of 1100 mm. The horizontal and diagonal bracing keeps the structure rigid and safe in use.

Practical for replacement or extension

For B2B environments where downtime incurs costs, a complete supplied used frame is an efficient choice. You receive a ready-to-use basis for your pallet racking, with base plates for the underside and the correct fastening material, so assembly and lead time remain manageable during maintenance or expansion.

Possible beam configurations and pallet heights

For a frame height of 5250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

2 beams

3 beams

4 beams

5 beams
