Gebruikt Toyota Frame TPNFBG 12 - 4250 x 1100 mm - compleet

Used pallet racking frame for reliable load-bearing structure and quick deployment

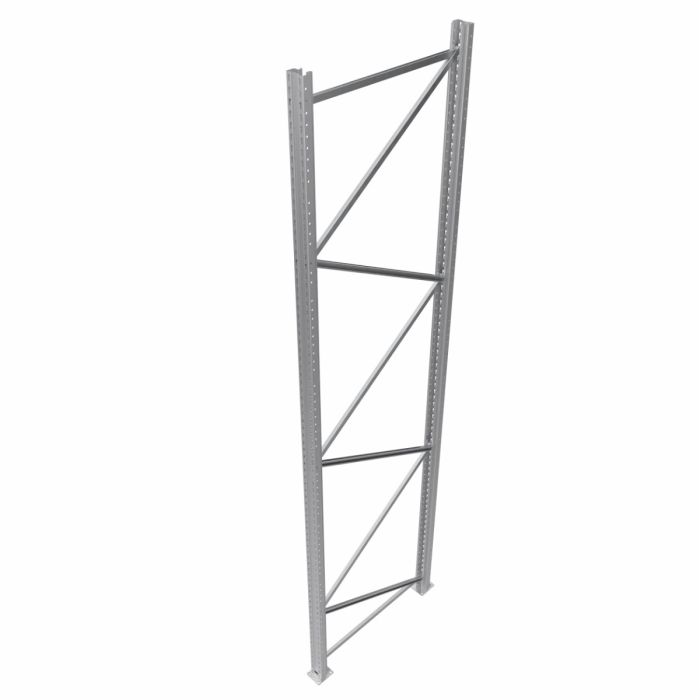

This used Toyota frame is a complete pallet racking component that serves as an upright frame forming the basis of a stable warehouse racking system. With a height of 4250 mm and a depth of 1100 mm, it is suitable for building or restoring a Toyota pallet racking system where a solid load-bearing structure is essential.

Application in the warehouse

The frame consists of two uprights of type TPNUG 12 with 85x65 mm profile, coupled with horizontal and diagonal bracing for rigidity. Base plates ensure correct footprint on the floor and contribute to safe installation of the racking in aisles and storage zones.

Practical for replacement or expansion

As the frame is delivered complete including fastening materials and typically pre-assembled, it is a practical choice for B2B customers who want to quickly replace a damaged frame or create additional racking sections within a Toyota Type 12 configuration.

Possible beam configurations and pallet heights

For a frame height of 4250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

2 beams

3 beams

4 beams

5 beams
