Gebruikt Jungheinrich Frame STD'B' 12 - 9500 x 1100 mm - compleet

Used pallet racking frame for stable load-bearing structure and quick assembly

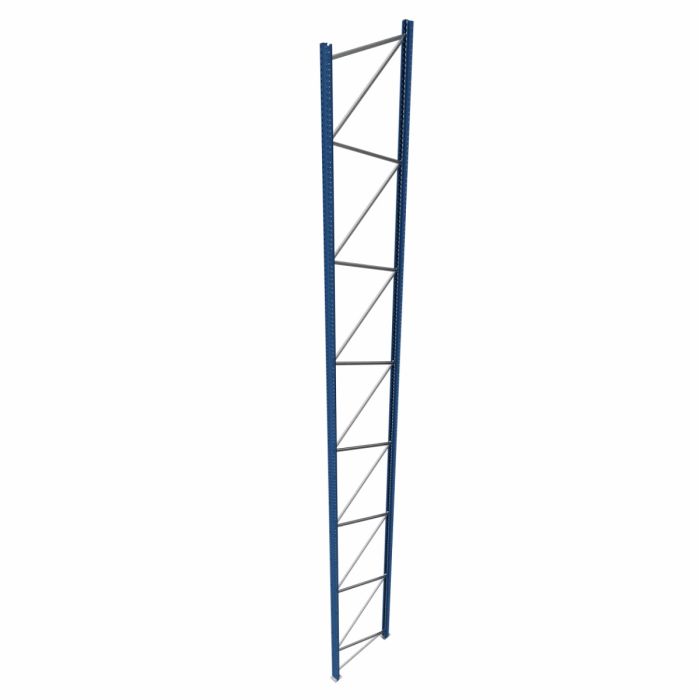

This used Jungheinrich frame from Type 12 forms the vertical basis of a pallet racking system and is designed for safely building storage bays with beams. It is delivered complete and is suitable for those who want to restore an existing racking system or expand a setup with original frame components. The assembled frame has a height of 9500 mm and a depth of 1100 mm, with uprights of 85 mm wide and 65 mm deep.

Application in the warehouse

In a warehouse, the frame determines the stability and alignment of the racking bay. The combination of uprights, base plates and horizontal and diagonal bracing provides a sturdy upright structure that directs loads in a controlled manner to the floor. This is essential for intensive use, such as in distribution centres and facilities with pallet storage.

Practical for replacement or expansion

Because this frame is offered including fastening materials, it is a practical choice for maintenance or expansion without having to collect loose parts. Delivery is in assembled form, unless otherwise stated, which saves time during assembly and makes it available for use on site more quickly.

Possible beam configurations and pallet heights

For a frame height of 9500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

4 beams

5 beams

6 beams

7 beams

8 beams
