Gebruikt Jungheinrich Frame STD'B' 12 - 11250 x 1100 mm - compleet

Used pallet racking frame for stable and high warehouse storage setup

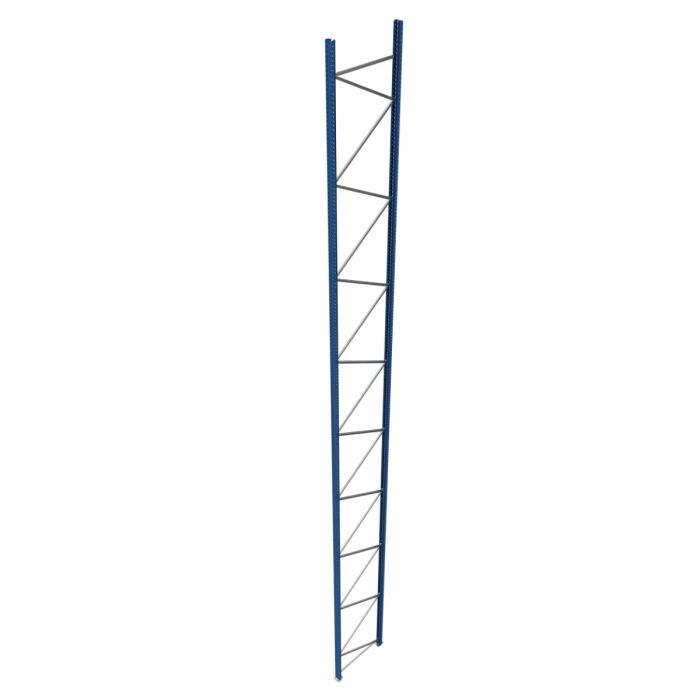

This used Jungheinrich frame is a complete side frame for pallet racking and forms the supporting foundation of your storage row. With an assembled dimension of 11250 x 1100 mm, it is suitable for high-bay storage where stability and dimensional accuracy are essential. The frame is constructed from 2 uprights of type STL'B' 12 (85 x 65 mm), including base plates, horizontal and diagonal bracing, and the corresponding fastening materials.

Application in the warehouse

A frame carries the beams and determines the height and depth of the racking row. This component is used when building or repairing pallet racking systems in distribution centers, production environments, and storage warehouses, where a solid structure is required for safe and efficient pallet handling.

Practical for replacement or expansion

Ideal when you want to replace a damaged frame or expand an existing Jungheinrich Type 12 installation with used racking materials. Because it is delivered complete, you save time on assembly and maintain consistent racking configuration.

Possible beam configurations and pallet heights

For a frame height of 11250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

5 beams

6 beams

7 beams

8 beams
