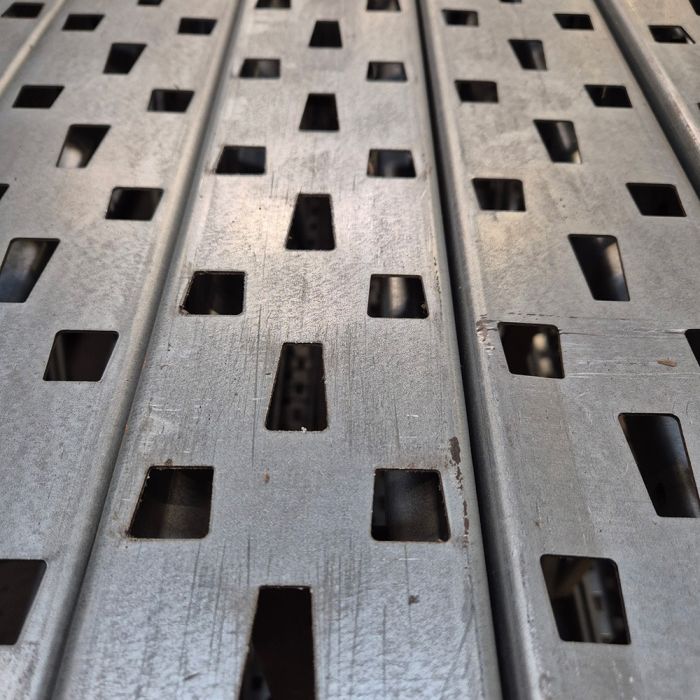

Gebruikt Duwic Frame MC201 - 5400x1100 mm - compleet
SKU
MC201-5400-1100-G
Complete frame from Duwic - pre-assembled
- Used condition
- Length: 5400 mm
- Depth: 1100 mm
- Width: 100 mm
Complete frame from Duwic - pre-assembled
- Used condition
- Length: 5400 mm
- Depth: 1100 mm
- Width: 100 mm
Possible beam configurations and pallet heights
For a frame height of 5400 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2650 | 2500 | 2400 |
| 1st beam | 5300 | 2500 | 2400 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3550 | 1600 | 1500 |
| 2nd beam | 5300 | 1600 | 1500 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2700 | 1200 | 1100 |
| 2nd beam | 4000 | 1150 | 1050 |
| 3rd beam | 5300 | 1150 | 1050 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1100 | 950 | 850 |
| 1st beam | 2150 | 900 | 800 |
| 2nd beam | 3200 | 900 | 800 |
| 3rd beam | 4250 | 900 | 800 |
| 4th beam | 5300 | 900 | 800 |
| SKU | MC201-5400-1100-G |
|---|---|
| Verwachte levertijd | 5-10 werkdagen |
| Country of Manufacture | France |
| Manufacturer | Duwic |
| Artikelnummer Fabrikant | MC201-5400-1100 |
| Product Group | Complete Frames |
| Frame Type | MC201 |
| Condition | Used |
| Length (mm) | 5400 |
| Width (mm) | 100 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Finish | Galvanized |
| Delivery Time Indication | 5-10 working days |
